SPECIFICATIONS

Brand Name: HawkSpeed
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: OddityRC XI20 Frame
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Frame
Recommend Age: 14+y
Remote Control Peripherals/Devices: Remote Controller
Technical parameters: value 2
Upgrade Parts/Accessories: 2inchFrame
Use: Vehicles & Remote Control Toys
Wheelbase: Bottom Plate

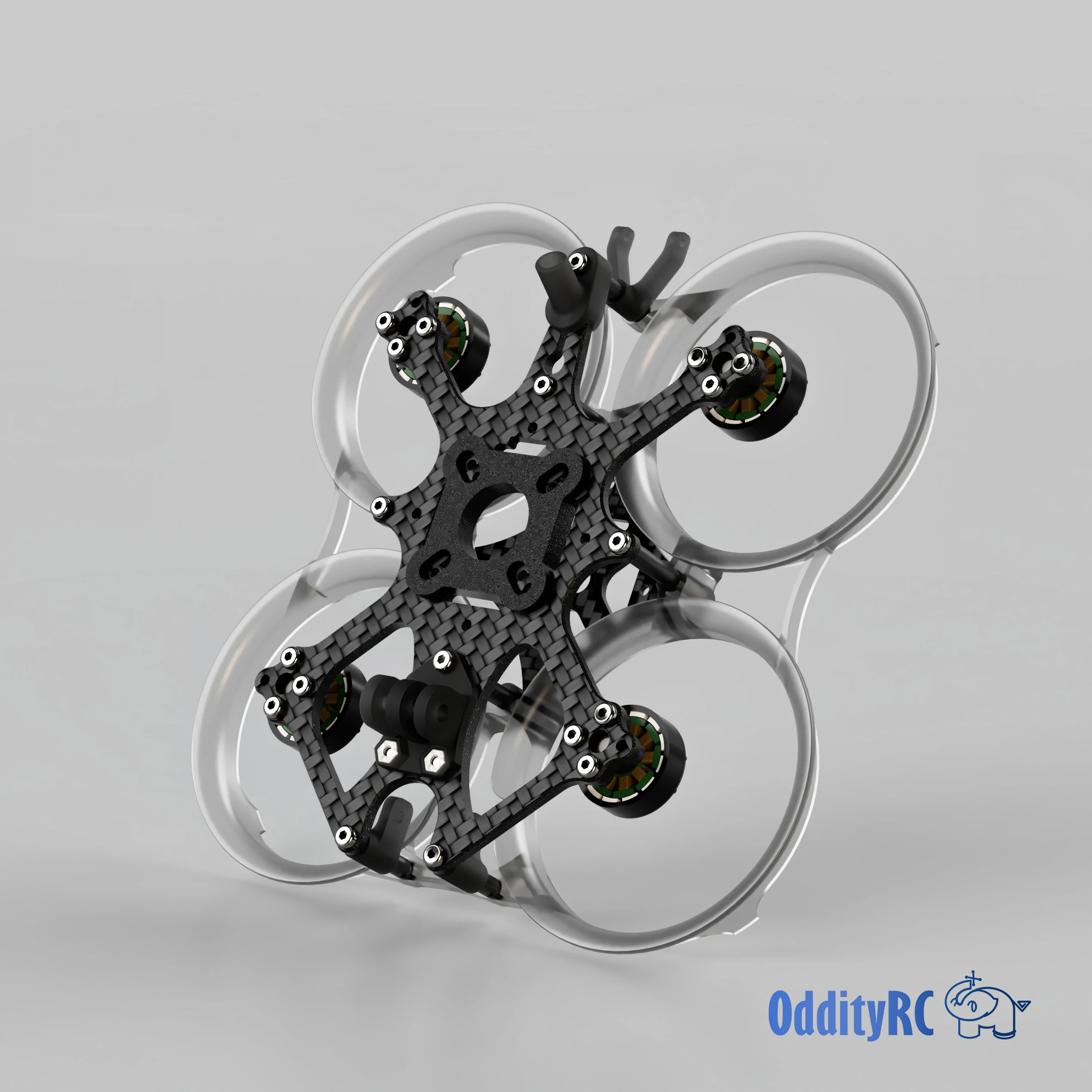

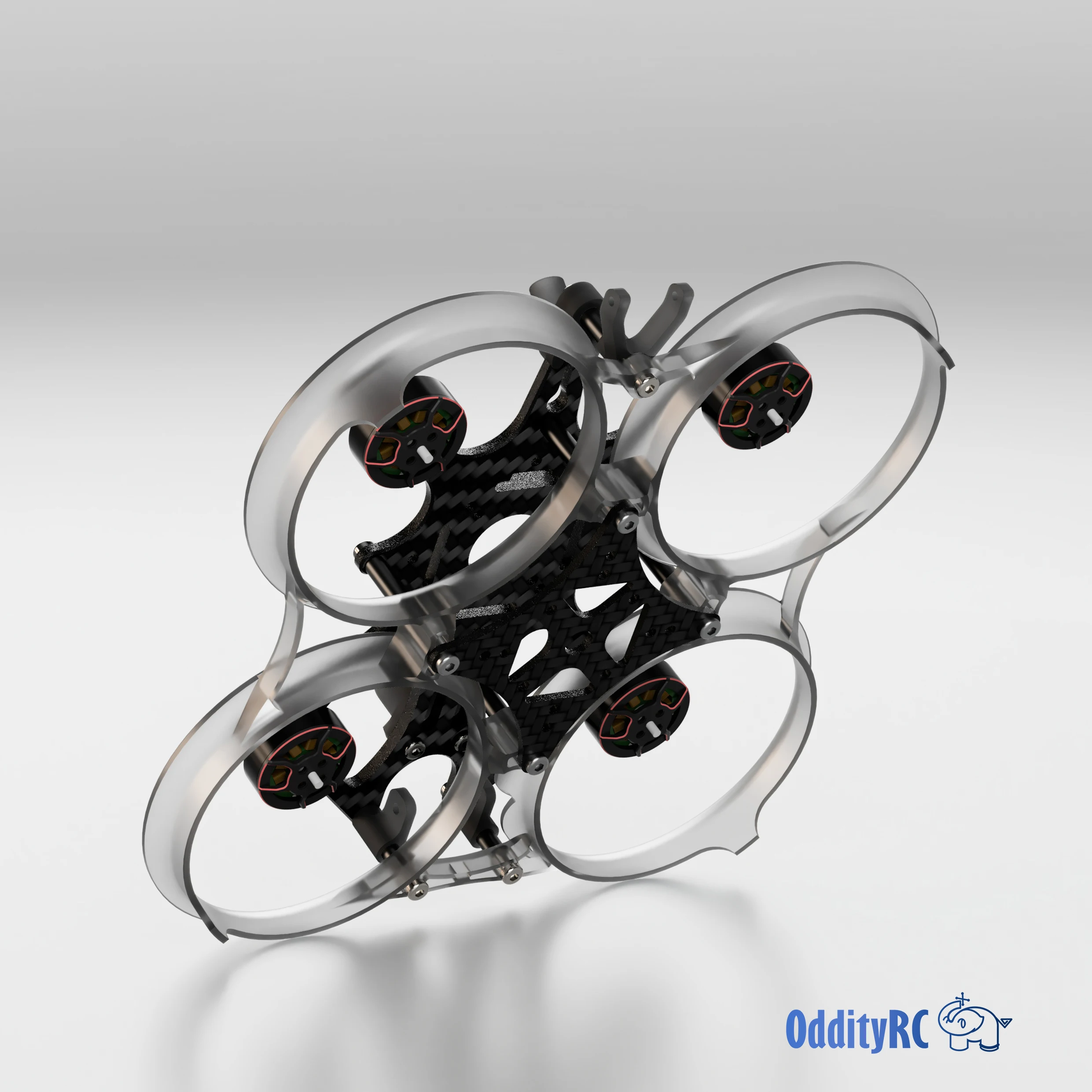

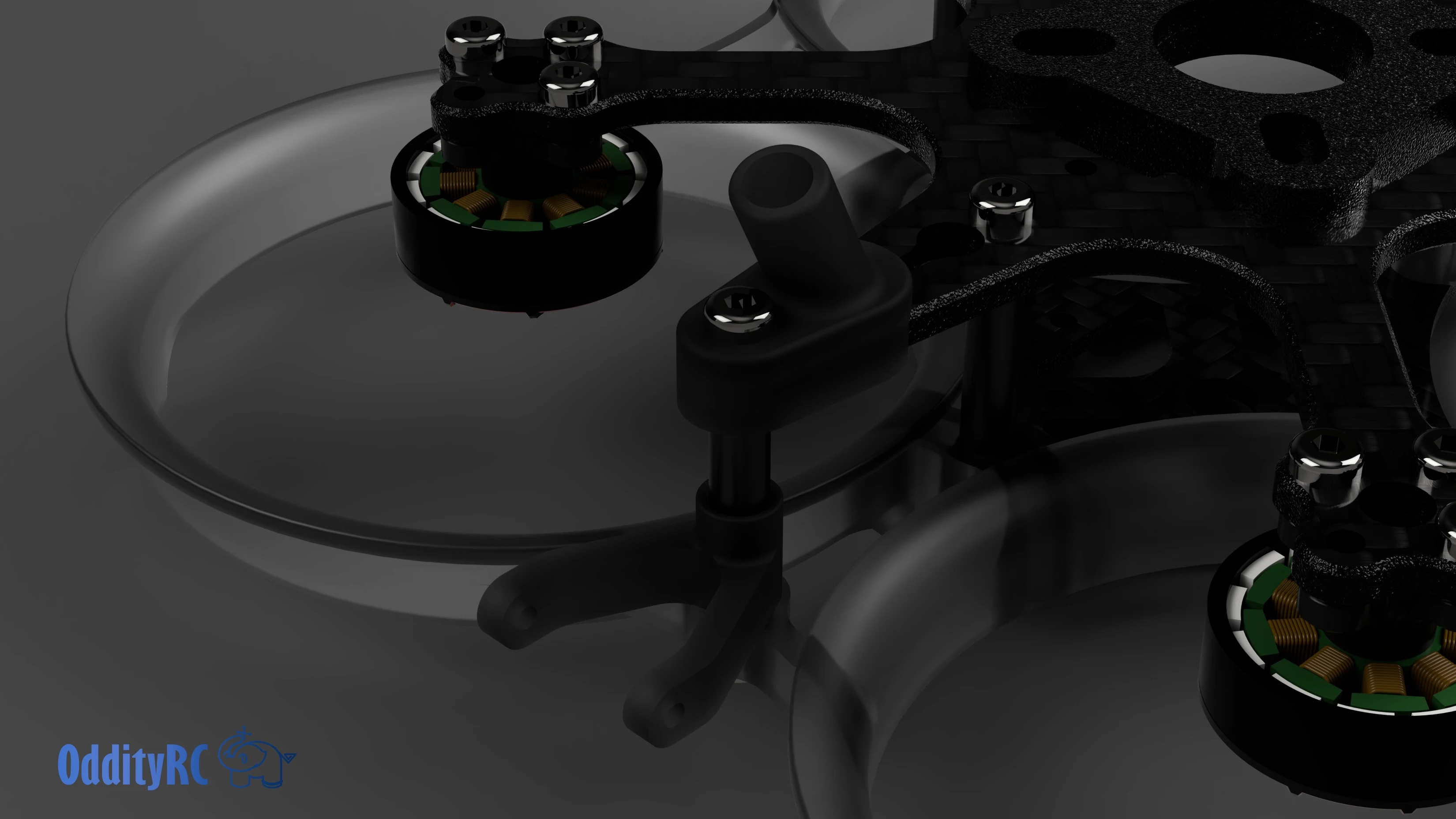

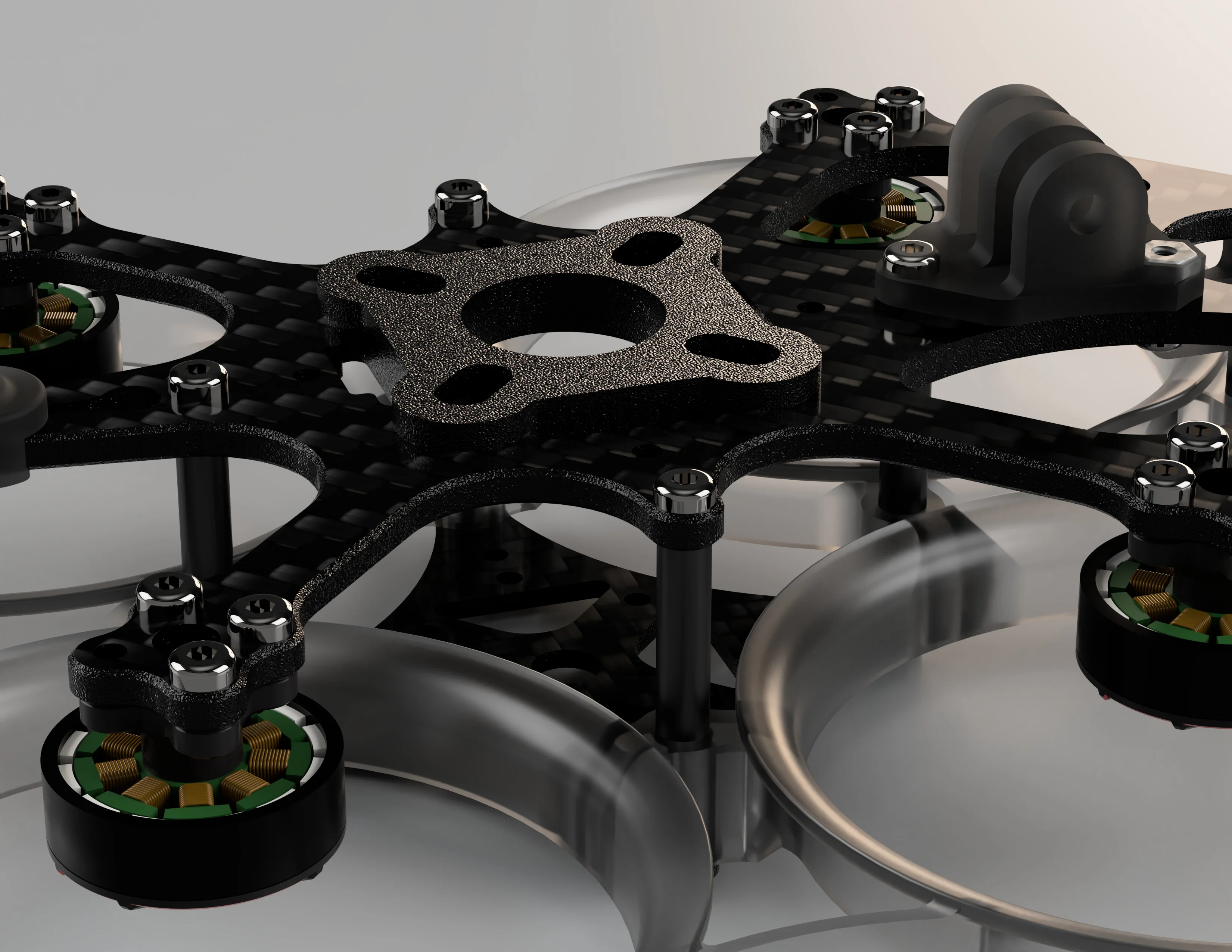

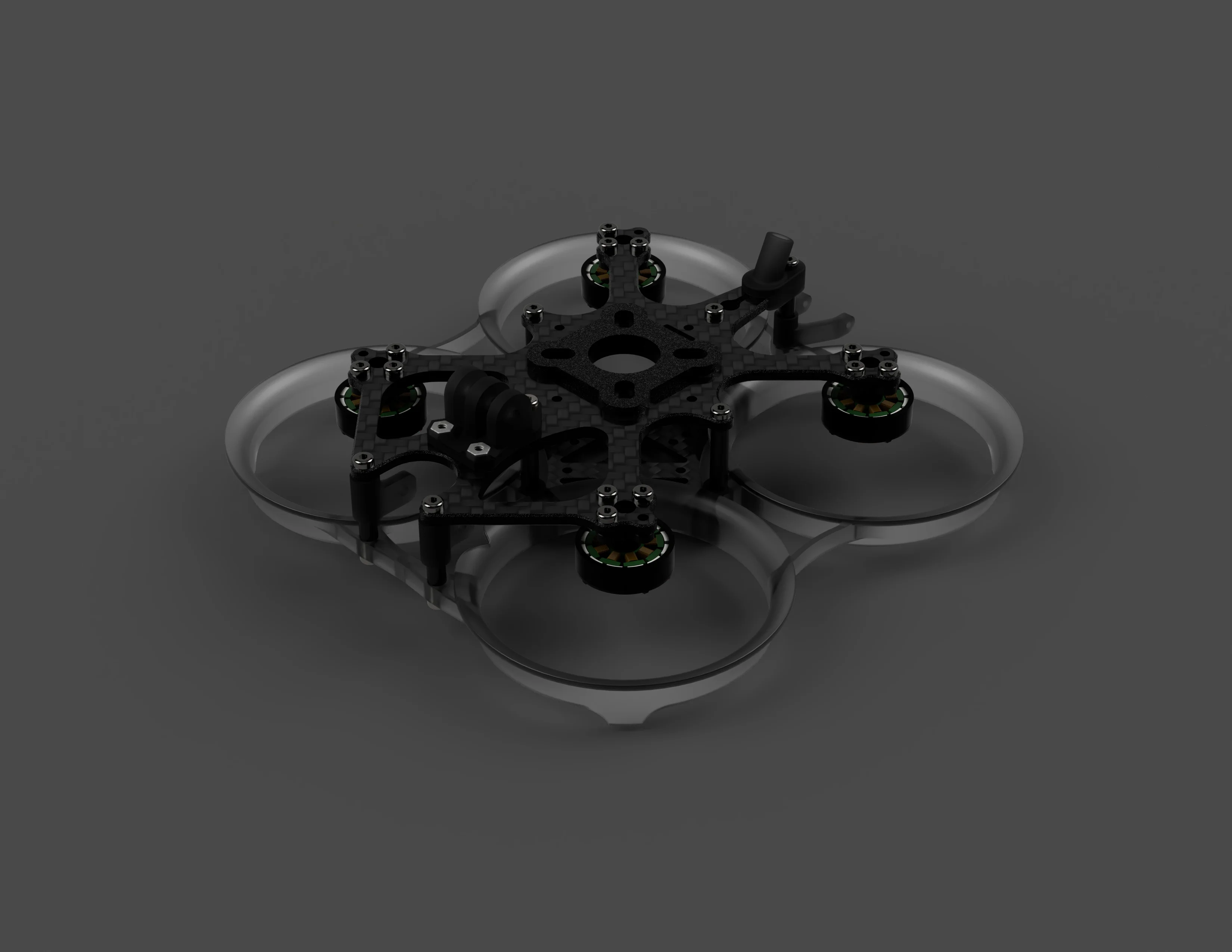

OddityRC XI20 Frame Kit 95mm Wheelbase 2 inch Multi Rotor Cinewhoop Micro Drone Quadcopter For FPV Racing RC Drone
Product Description
The XI20 is an indoor lightweight film and television shooting rack developed at the same time as the XI25. It has strong mobility and can meet a certain degree of flower shooting. The protective ring adopts aerodynamic design, which can effectively improve the efficiency of blades and motors. Ample interior space is compatible with Vista digital sky terminal.

Weight of injection ring: 13g
Total frame weight (including screws and printing parts) : 27g
Internal space height: 23mm (support aio+vista sky terminal)
Wheelbase: 95mm
Motor hole position: 9mm
Flight control hole position: 16mm, 20mm, 25.5mm, 26.5mm
Figure hole position: 20mm and 25.5mm
Camera: 14mm

Recommended parts:
Motor: 1204
Battery: 4s 450mah, 4s 650mah (not recommended to exceed 850mah)
Electric modulation: 13-25A

Rack packing list:
2mm upper board x1
1.5mmx1 Lower board x1
Injection ring
EVA fender ×1
Battery strap x 1
3M silicone mat x 1
14mm aluminum column x7
2 m2*4mm screws
7 m2*6mm screws
4 m2*10mm screws
Three m2*12mm screws
8 m2*16mm screws
m2 nylon nut x 10
TPU lens fixed ×2
TPU camera holder ×1
TPU Receiver antenna base x1 (miniT antenna only)
TPU antenna base ×1
OddityRC Weird like sticker x1
