SPECIFICATIONS

Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Carbon Fiber
Model Number: Poisonous Bees 7''
Origin: Mainland China
RC Parts & Accs: Mark4 7''
Recommend Age: 14+y
Remote Control Peripherals/Devices: BLHELI 60A ESC
Size: 7 inch
Tool Supplies: 2807 Motor
Upgrade Parts/Accessories: Betaflight F4
Use: Vehicles & Remote Control Toys

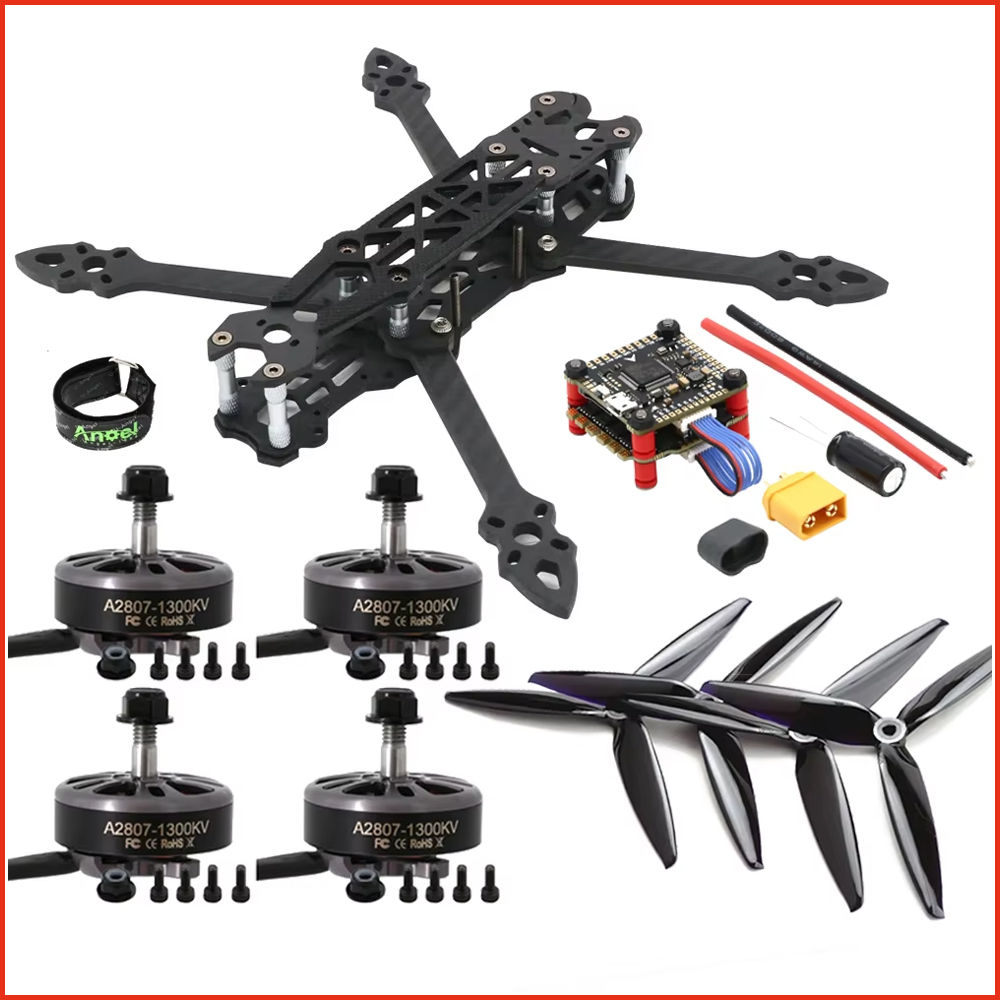

Mark4 7 Inch 295mm Drone Kit & A2807 KV1300 6S Brushless Motor & F4V3S Plug Flight Control & 60A 4-in-1 ESC Stack
Name: Mark4-7inch
Propeller: 7 inch
Weight: 121g
Motor to moto: 295mm
Size: 193*223mm
Arms plate: 5mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Side plate: 2.5mm
Camera mount size: 19.3mm

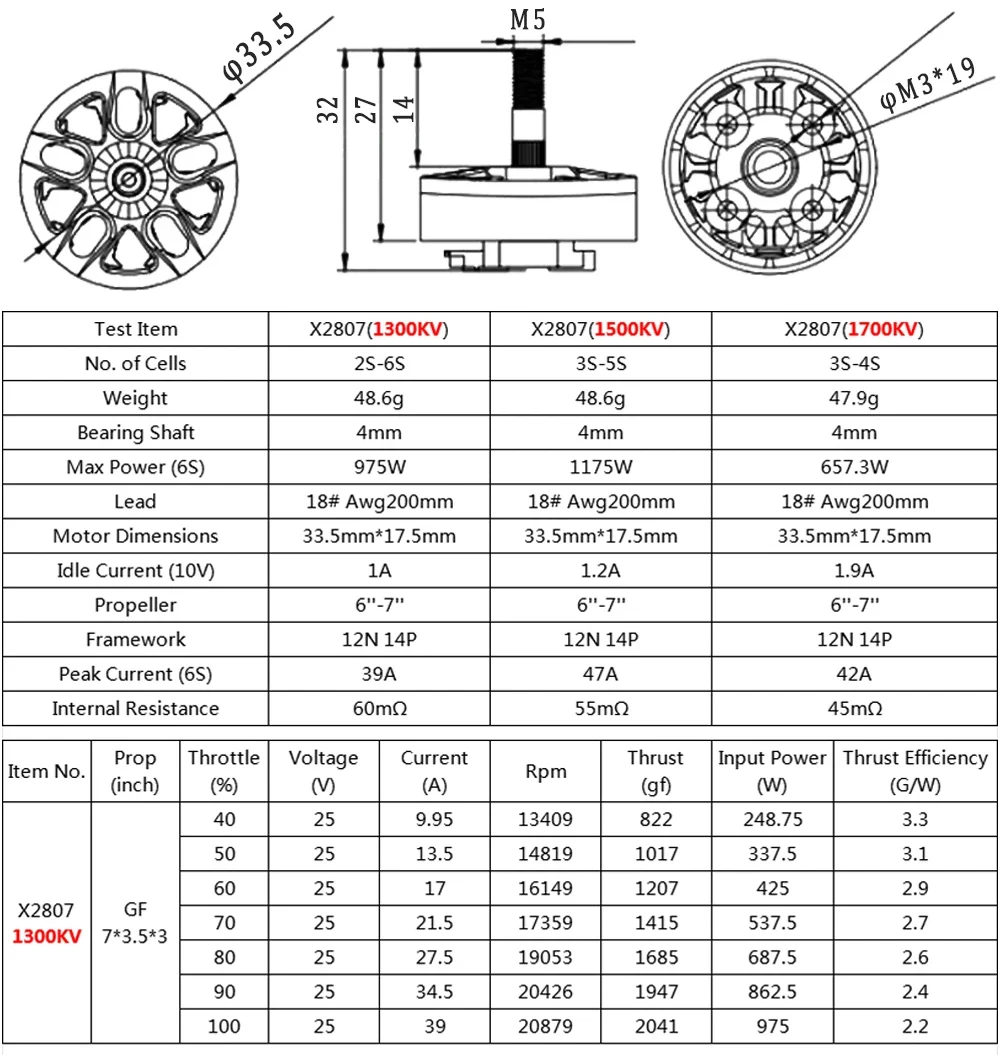

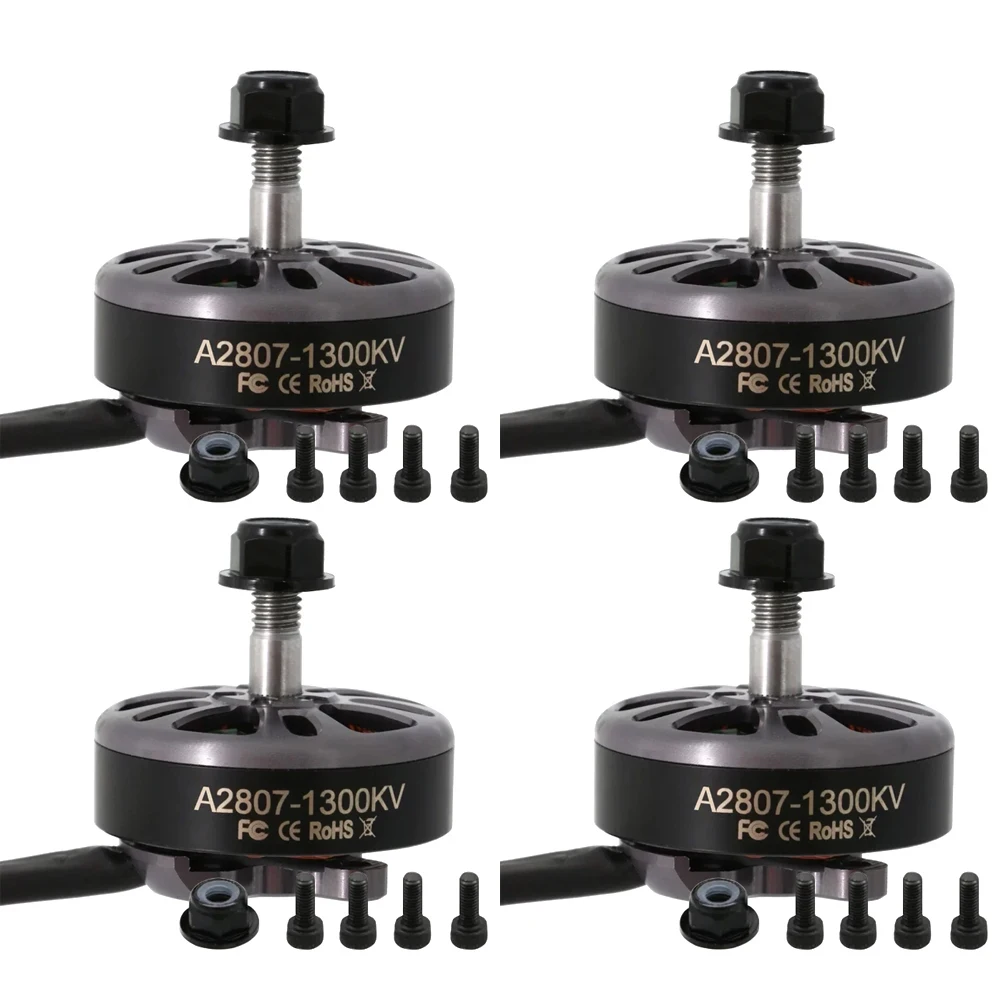

A2807 KV1300 6S CW Motor:

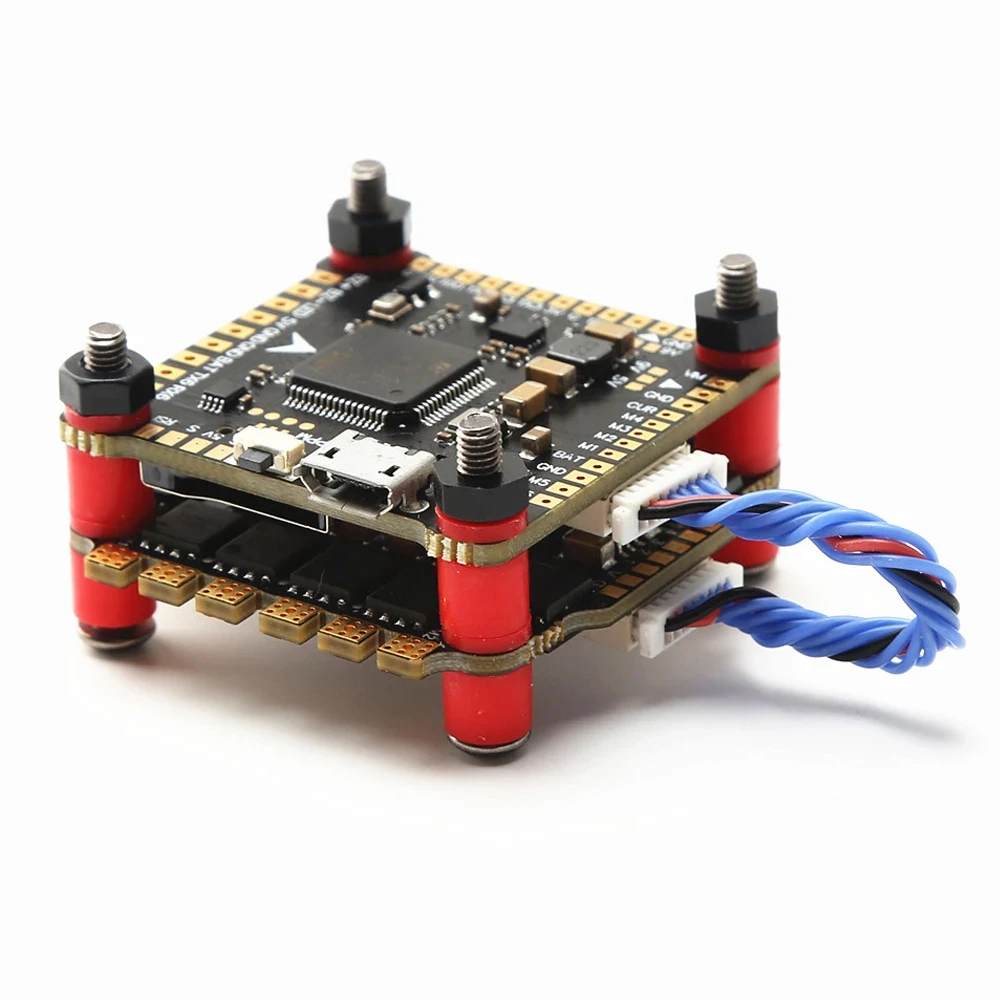

Betaflight F4 V3S PLUS FC + BLHELI 60A 3-6S 4-in-1 Brushless ESC

Betaflight F4 V3S PLUS FC Flight Controller:

Features:
Betaflight F4 V3S PLUS FC flight controller board for RC FPV drone.
Size: 36x36mm, Mounting Holes: 30.5x30.5mm.
The function of the flight control is to control the drone through the gyroscope on the flight control board.
Great choice for university professors and students who are interested in developing RC FPV drone.
If there are any problems, please contact our store in time.

Specifications:
Item Name: F4 V3 PLUS Flight Controller
Size: 36x36mm
Mounting Holes: 30.5x30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
Gyro: BMI270
SBUS/PPM AND Spketrum DSMX ports
Memory card blackbox
Baro (BMP280)
BEC: 5V3A, 9V3A;
On-board video filters (only 5V to VTX and camera)


BLHELI_S 60A 3-6S 4-in-1 ESC:

Description: 60A 4-in-1 ESC
The installation size is 30.5mm×30.5mm, the mounting hole is M4, and it supports shock-absorbing column installation
ESC onboard current sensor.
Continuous current: 60A
Instantaneous current [5 seconds]: 70A
Firmware: BLS J_H_30_REV16_7
The ESC has on-board filter capacitors to suppress the back electromotive force, stabilize
the battery voltage, and protect the precision components of the flight control ESC

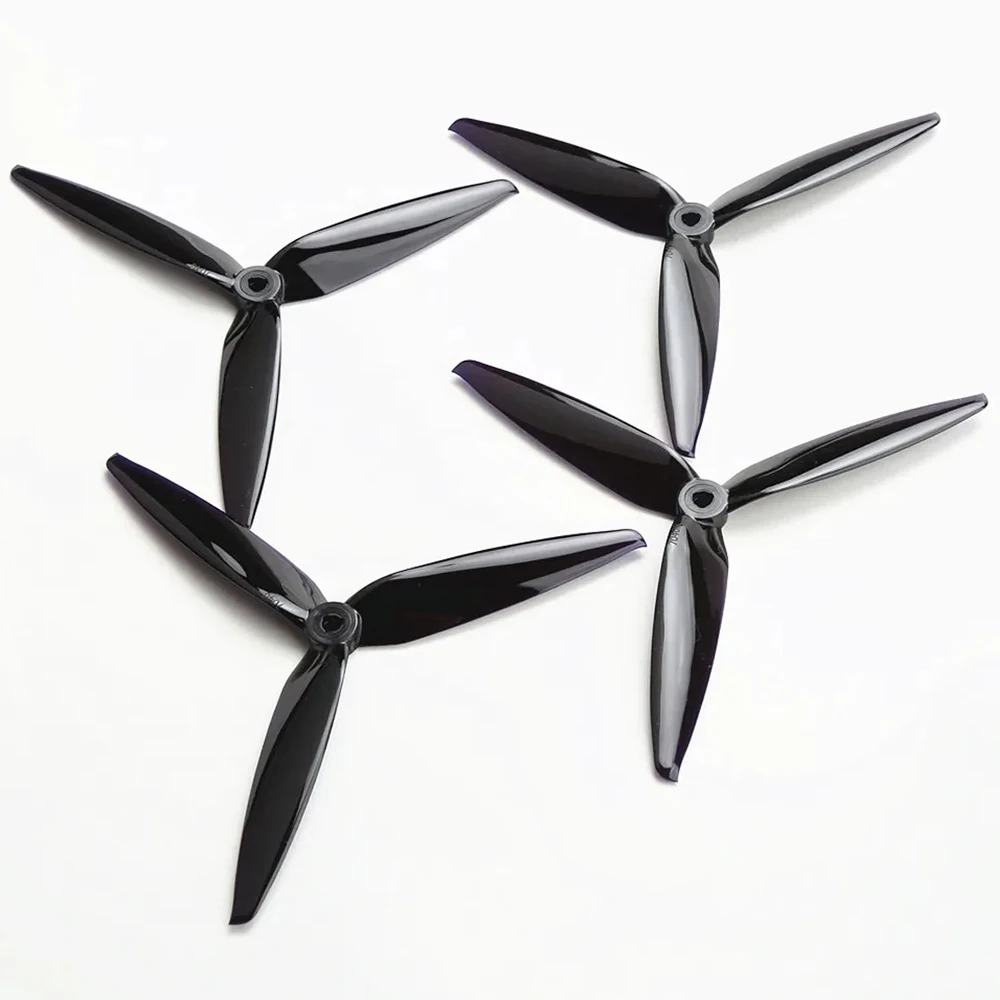

Tracker 7X4X3 7040 7-inch 3-blade CW CCW Propeller:

Propeller Diameter: 7 inch
Pitch: 4
Blades: 3
Material: Poly Carbonate
Weight: 9.1g
Hub Diameter: 13.5mm
Hub Thickness: 7.5mm
Shaft: 5mm
Adaptor Rings: NO
