SPECIFICATIONS

Brand Name: NONE
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: Flywoo GOKU F722 PRO Mini V2 20X20 Flight Controller
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Flight Controller
Recommend Age: 14+y
Remote Control Peripherals/Devices: Remote Controller
Size: NA
Technical parameters: value 2
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Flight Controller
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

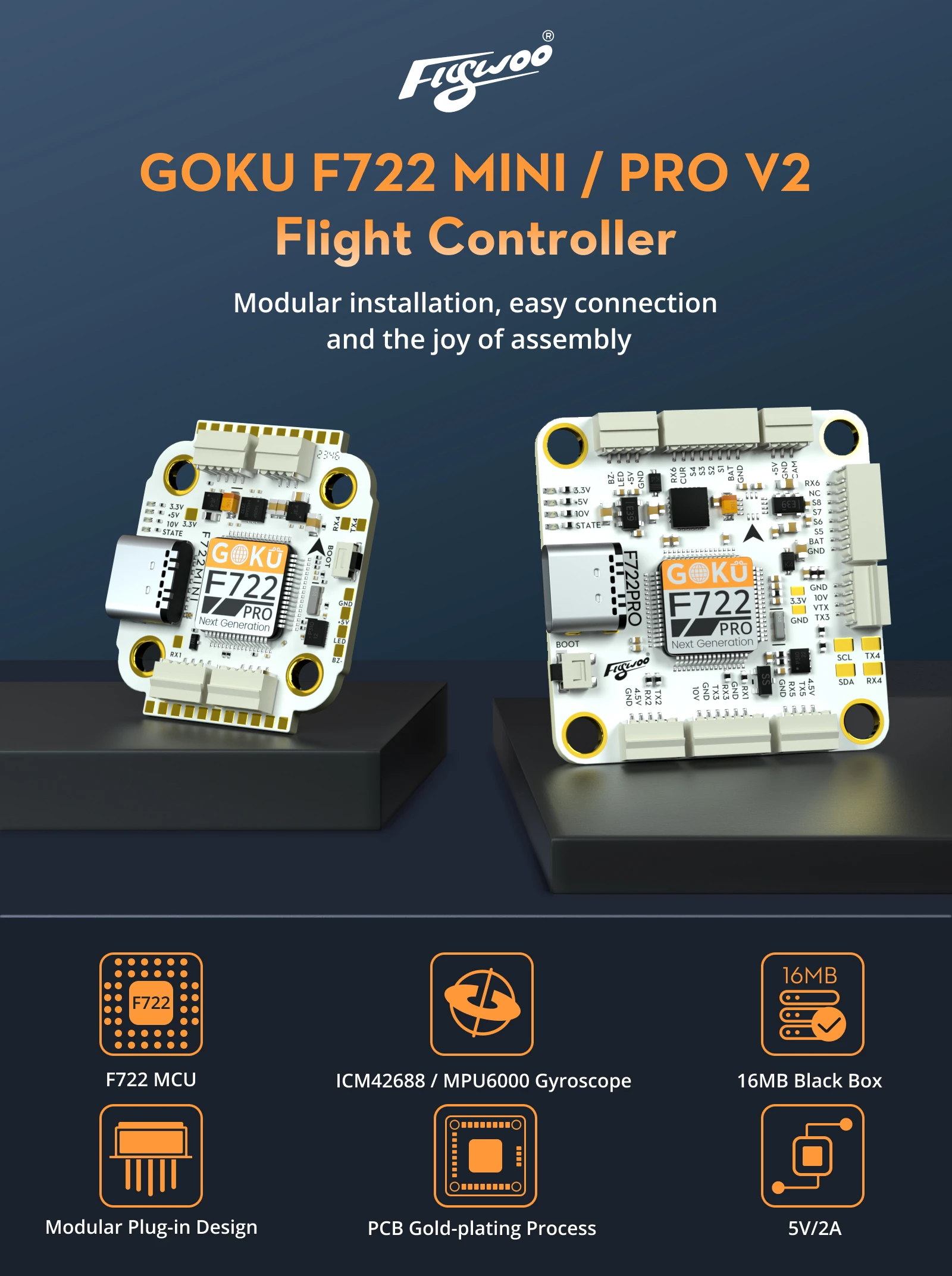

The new generation F722 PRO Mini V2 flight controller from FLYWOO not only offers a standard 20mm size, high-performance STM32 F722 main control,  but it also supports 8 motor outputs and reserves dual 4-in-1 ESC sockets.

It features a user-friendly socket design for all ports, which significantly simplifies the process of connecting devices, thereby enhancing installation efficiency and making maintenance and fault inspection more convenient. This design effectively lowers the threshold for building drones.

Moreover, all solder pads are retained, providing customers with the flexibility to choose their preferred method of device connection.

Furthermore, it includes a plug-and-play feature, specifically designed for the DJI O3 Air Unit, which streamlines the integration process for pilots looking to utilize DJI's advanced digital transmission system with their builds.

Highlights：

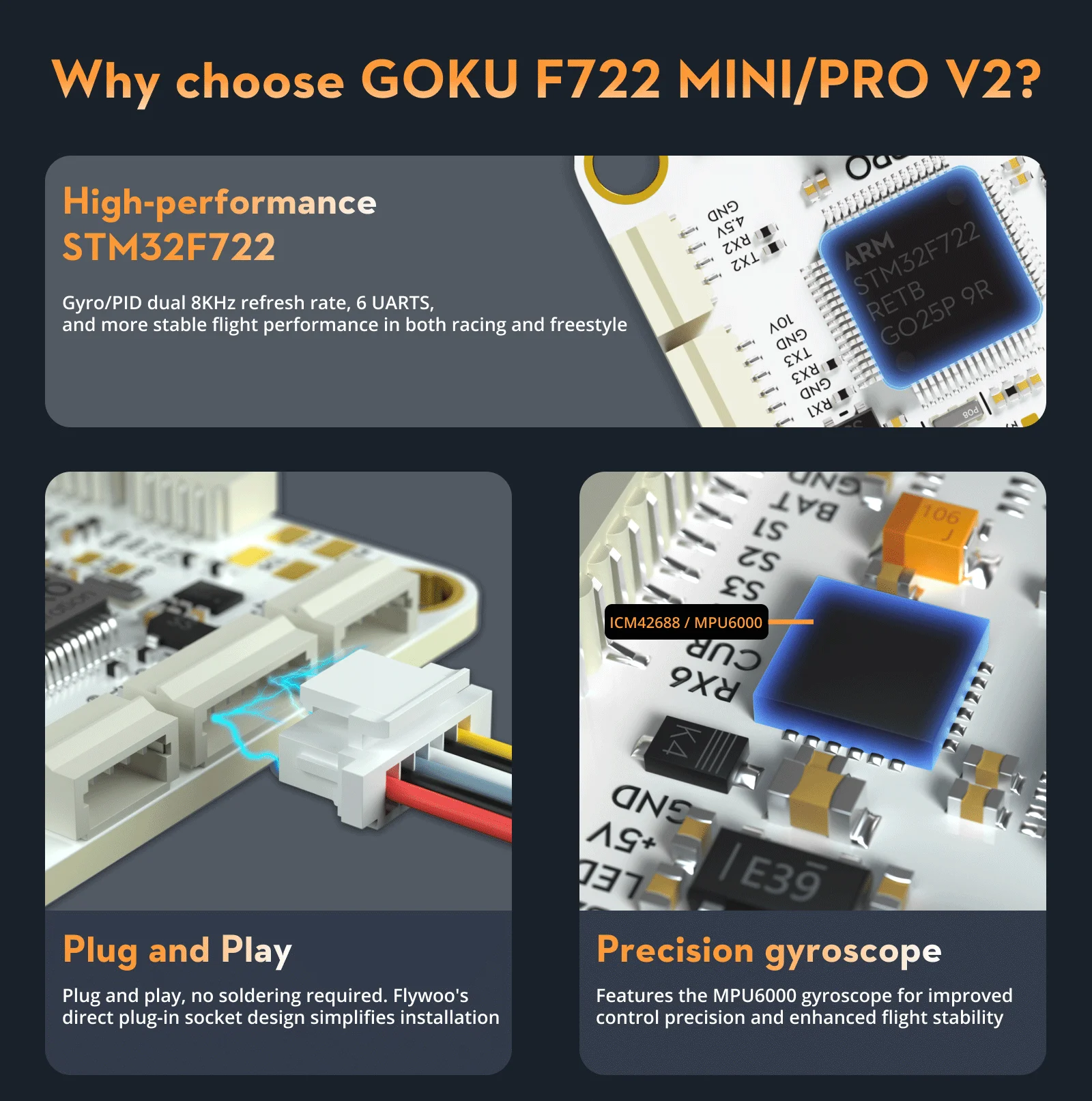

High-performance processor: Equipped with the STM32F722 high-performance processor with a processing speed of up to 216MHz for faster response.
Precision gyroscope: Features the ICM42688 gyroscope for improved control precision and enhanced flight stability.
Modular installation: Utilizes snap-lock sockets for plug-and-play functionality without the need for soldering, enabling modular installation, and includes reserved solder pads.

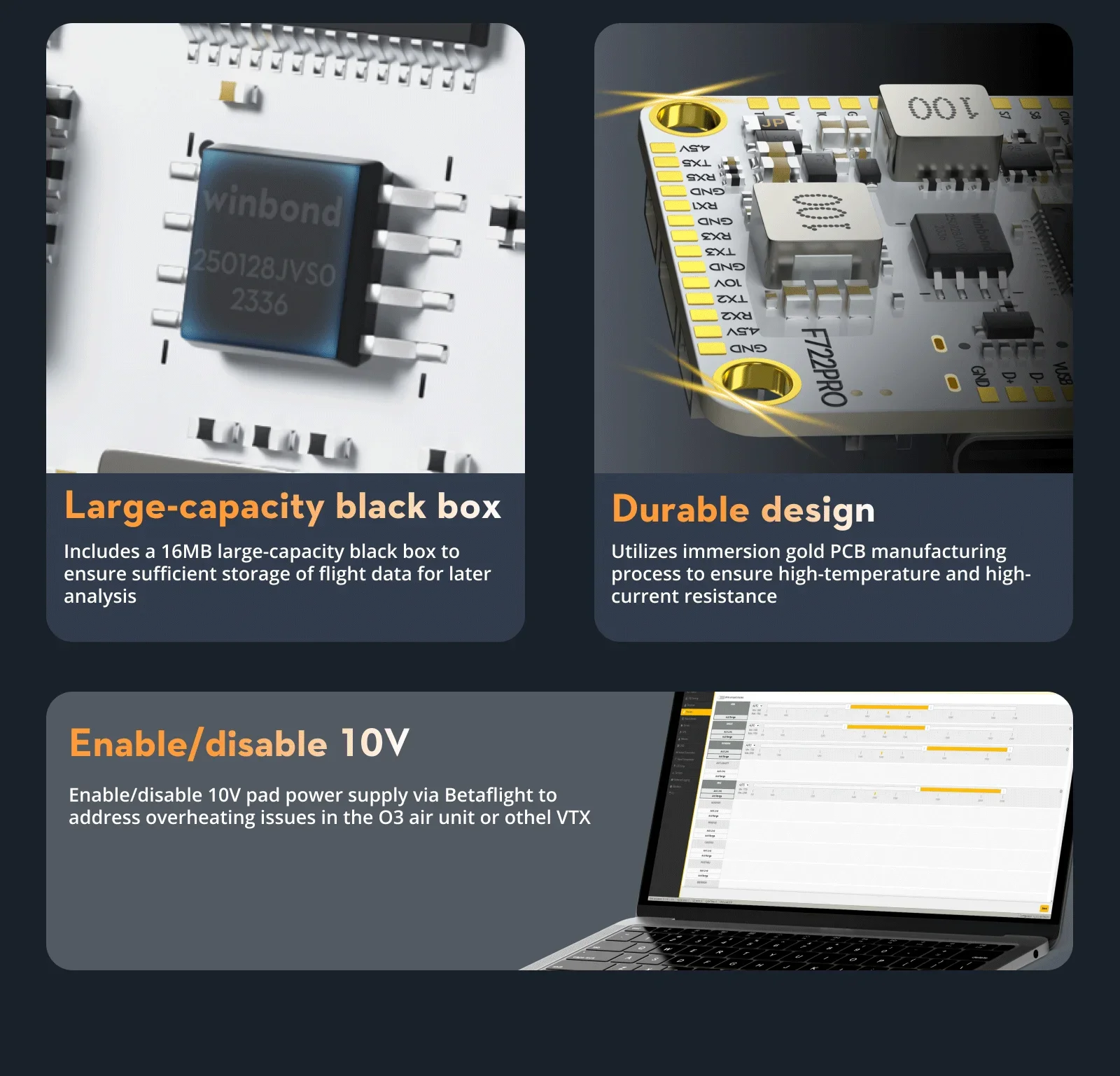

Large-capacity black box: Includes a 16MB large-capacity black box to ensure sufficient storage of flight data for later analysis.
Stable current output: Onboard 10V/2A and 5V/2A BEC to provide stable current output for VTX and various peripherals.
Multiple motor outputs: Supports 8 motor outputs and reserves dual 4-in-1 ESC sockets for simplified connections.
Durable design: Utilizes immersion gold PCB manufacturing process to ensure high-temperature and high-current resistance, guaranteeing stable operation.
Specifications：

GOKU F722 PRO Mini V2 Flight Controller
BF Flight Controller Firmware: FLYWOO F722PROV2
INAV Firmware: FLYWOO F722PRO
MCU: STM32F722
Gyroscope: ICM42688
OSD: AT7456E
Barometer: DPS310 / SPL06
Black Box: 16MB
UARTS: 1/2/3/4/5/6
Input Voltage: 7.4V-26V/2-6S LiPo
BEC: 10V2A/5V2A
Flight Controller Size: 32mm x 29mm x 20mm
Mounting Holes: M2 20x20mm
Weight: 9.9g
In the Box

1 x FC&ESC Connection Cable
1 x Buzzer Connection Cable
1 x GPS Connection Cable
1 x DJI O3 Connection Cable
1 x Receiver Connection Cable
5 x M3 Shock-Absorbing Ball
5 x M2 Shock-Absorbing Ball
1 x Camera Connection Cable
