SPECIFICATIONS

Brand Name: QX-MFLU
Certification: CE
For Vehicle Type: Helicopters
Four-wheel Drive Attributes: Motors
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: 2625-3400kv
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: engines
Recommend Age: 14+y
Remote Control Peripherals/Devices: Remote Controller
Technical parameters: value 2
Tool Supplies: Battery
Upgrade Parts/Accessories: Motor
Use: Vehicles & Remote Control Toys
Wheelbase: Screws


Drone Brushless Motor Model 2625-3400kv Motor Brushless for 250 Helicopter

Motor KV                                3400KV
Motor Resistance(RM)                      0.075
Idle Current(Io/10V)                        1.6A/10V
Max Continuous Current                    20A
Max Continuous Power                     210W
Weight                                  39g
Lipo Cell                                 2S—3S

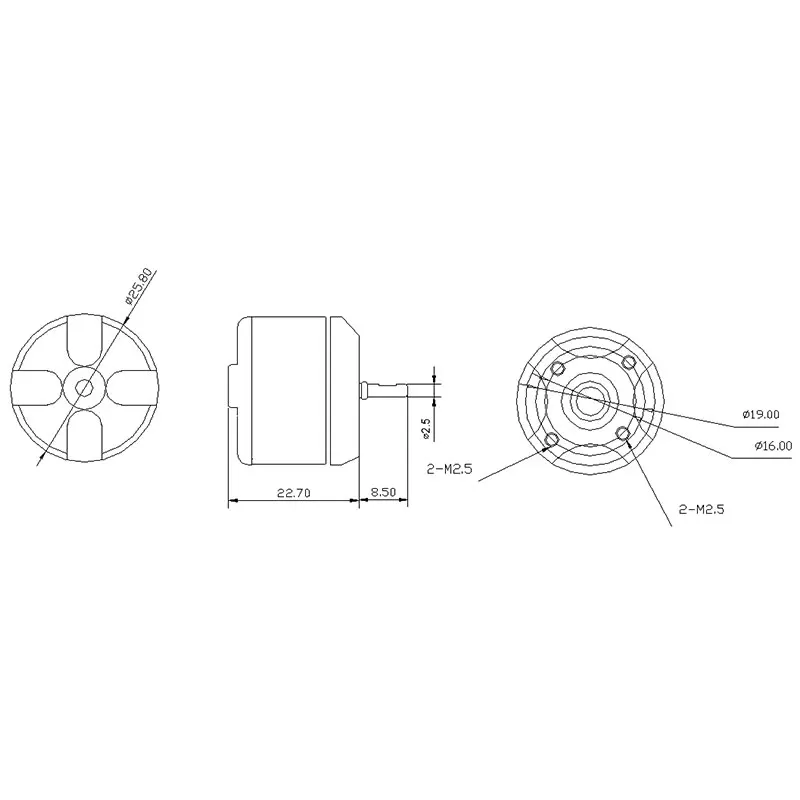

Motor Diameter                          25.8mm
Motor Body Length                       22.7mm
Configu-ration                            9N6P
Overall Shaft Length                       31.2mm
Shaft Diameter                           2.5mm
Bolt holes spacing                         19mm
Bolt thread                              M2.5*5
Motor Timing                             5deg
Drive Frequency                           8kHz
