SPECIFICATIONS
Brand: Xingkaitech
Brand Name: NONE
High-concerned chemical: None

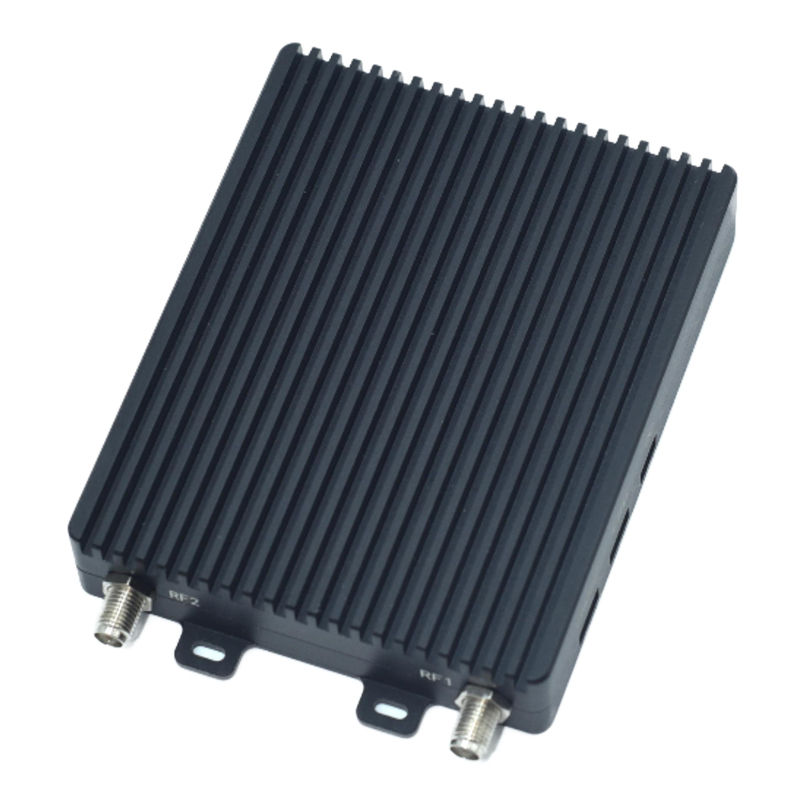

Model Number: XK-F401E Video data link
Origin: Mainland China
Drone 2km Video Transmission Wireless Transmission Reciever Flight Control Remote RF Telemetry RC Link Nlos Ofdm Hopping System
General IntroductionBroadband wireless video and data transmission system Two-way communication: Video+data camera control/drone control/telemetry 3 in 1
Point to Point; Point to Multi-Points relay mode; MIMO AdHoc networks.
XK-F401E is a style of HD wireless digital video and data transmission device, with low power consumption, long communication distance and other characteristics, Support the transmission of the network data, flight control data, PTZ control data, remote control data...at the same time.
The air unit can be configured as point-to-point and also point to multi-points relay mode, Users only need to add air units to expand the application scenarios. At the same time, it has encryption function, and users can set the channel encryption key independently.
XK-F401E supports transparent transmission protocol, which can transmit flight control data and other data information at the same time. The ground unit can interact data with ground station through serial port or network port (UDP / TCP). Support serial port and SBUs transparent transmission function.
Features& FunctionsFeatures
Wide frequency range and wide bandwidth are supported.
Rich control interfaces.
High carrier noise ratio.
Wide input voltage range, supporting DC8 ~ 30V voltage input.
Low power consumption.
All central nodes and slave nodes communicate with a shared operating bandwidth in one direction (20MHz, not less than 100Mbps).
Support OTA upgrade, local and remote upgrade.
Adaptive frequency hopping, strong anti-interference ability.
Functions
The working frequency band is 600MHz /1.4GHz, and the frequency point can be setted.
The bandwidth is adjustable, including 3MHz, 5MHz, 10MHz and 20MHz.
The mapping mode is adjustable, including QPSK, 16QAM and 64aqm.
Support Ethernet, serial port and SBUs.
Support AES128 and AES256 encryption.
Technical Parameters
Item | Spec/Parameters | |
Air Unit | Ground Unit | |
Operation | ||
