SPECIFICATIONS

Brand Name: NONE
Certification: CE
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: MAMBA MK4 F722  MINI Flight Controller
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: MINI Flight Controller
Recommend Age: 14+y
Remote Control Peripherals/Devices: Remote Controller
Size: NA
Technical parameters: KV1100
Tool Supplies: Assembled class
Upgrade Parts/Accessories: MK4 F722 MINI Flight Controller
Use: Vehicles & Remote Control Toys
Wheelbase: Bottom Plate

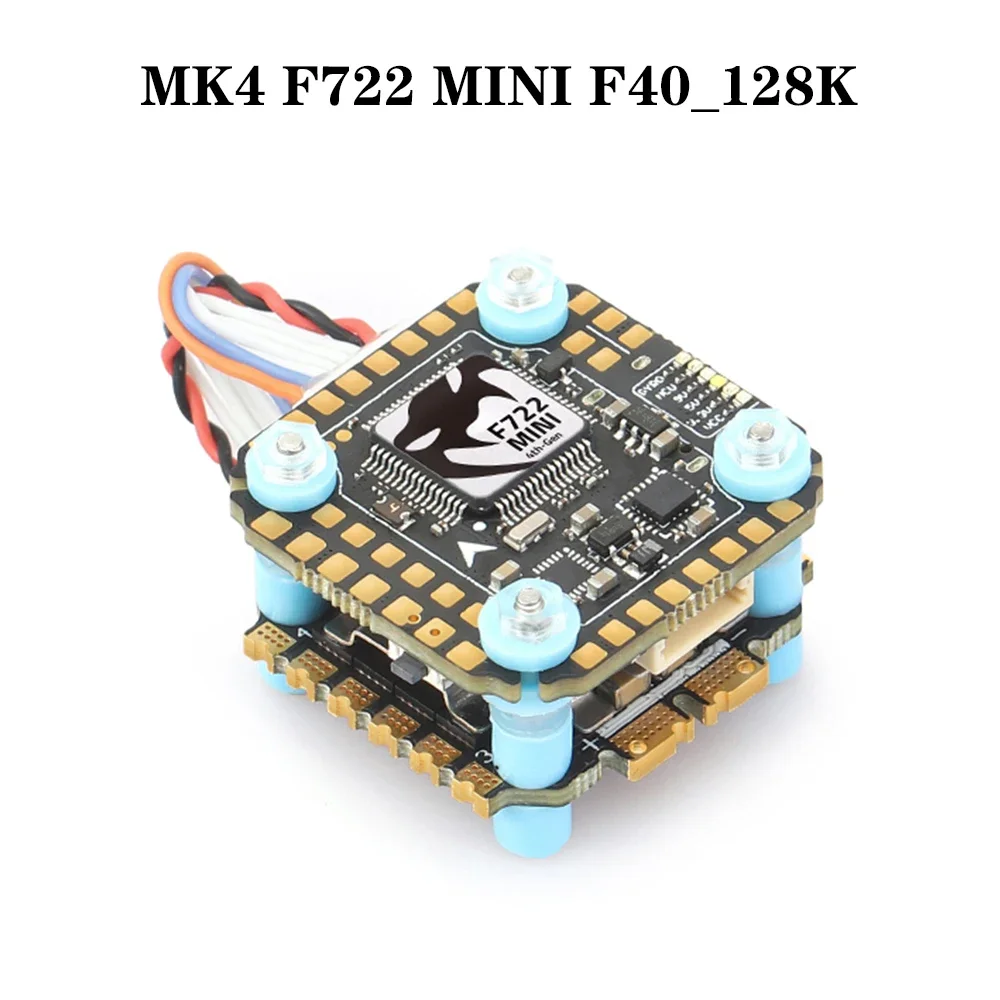

DIATONE MAMBA MK4 F722 MINI OSD Flight Controller W/ BLHeli_32 F40 _128K ESC Dshot300/600/1200 3-6S for RC FPV Racing Drone

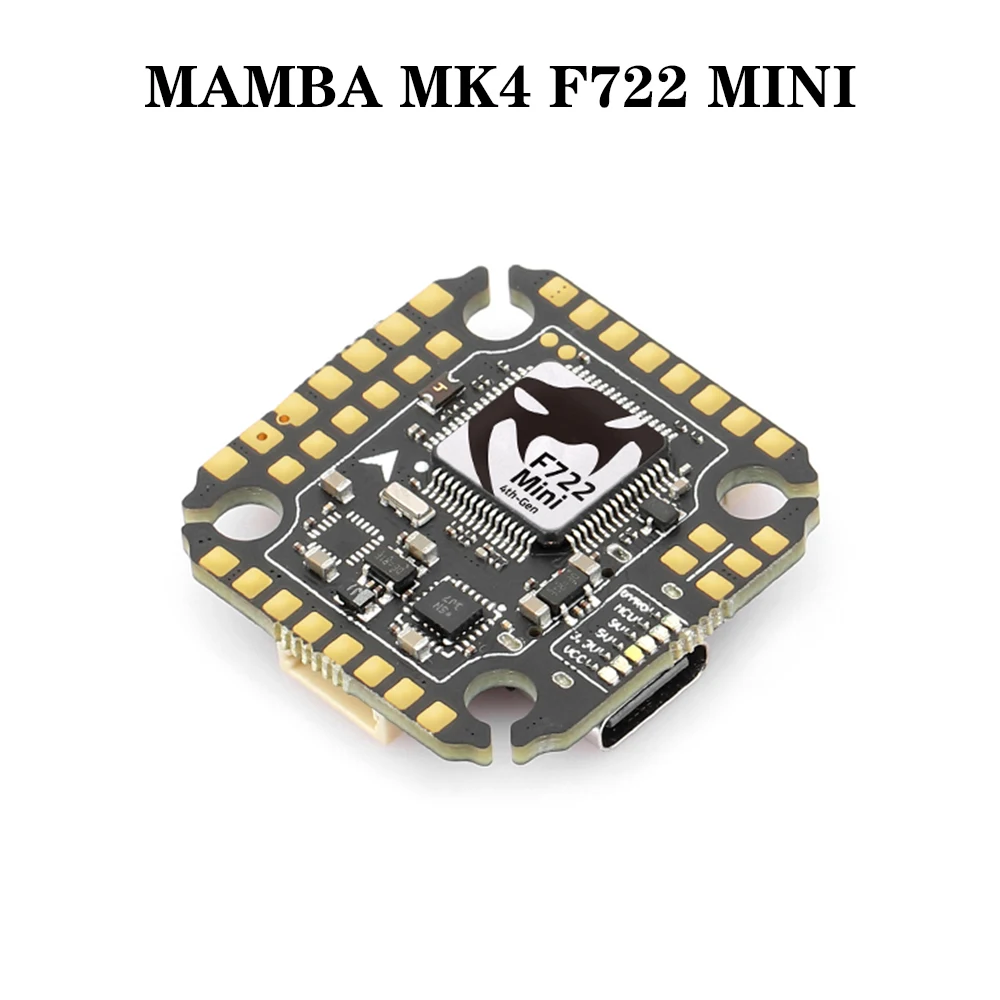

MAMBA MK4 F722 MINI
◆MCU: 216MHz STM32F722
◆GYRO: ICM42688P
◆OSD: Yes
◆Black box: 16M Flash Memory
◆Barometer: SPL06
◆Number of serial ports: 6Set
◆I2C: Yes
◆F.Port: Yes
◆RSSI: No
◆Buzzer: Yes
◆Galvanometer: Yes
◆ESC signal: 8 Set
◆ESC program: Dshot300/600/1200
◆ESC kickback: Yes
◆Flight control status indicator: Yes
◆LED control switch: BF LED
◆Air terminal interface: Yes
◆WIFI: No
◆Video transmission power control: Yes
◆Receiver Short Circuit Protection: Yes
◆TVS power protection: Yes
◆BEC: 3.3V 0.5A & 5V 2.5A & 9V 2A
◆Input voltage: 3~6S Lipo (12.6~25.2V)
◆Mounting hole: 20mm, M2/M3

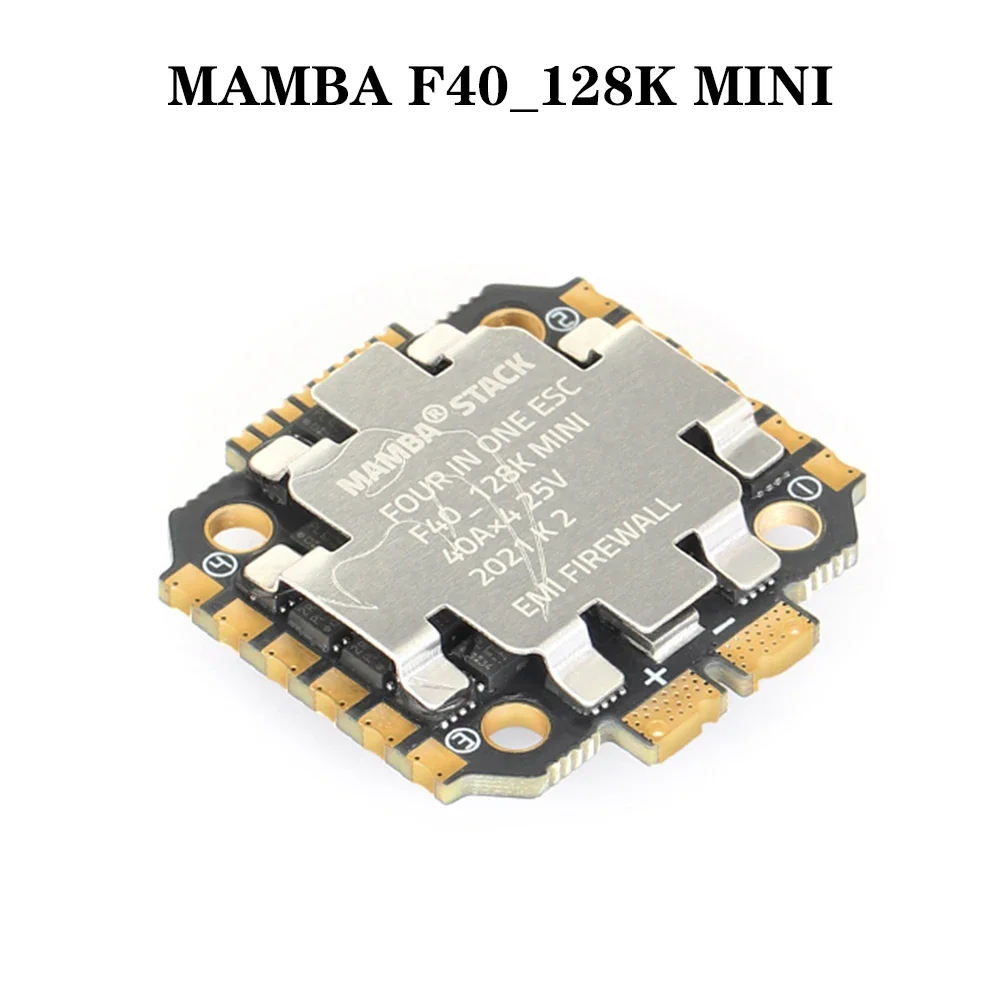

MAMBA F40_128K_MINI
◆Input voltage: 3~6S Lipo (12.6V~25.2V)
◆Rated current: 40A×4
◆Peak current: 45A (10S)
◆BEC: No
◆Firmware: BLHeli_32 MAMBA F40_128K_MINI
◆Program: Dshot300/600/1200
◆PWM: 24~128K
◆TVS power protection: Yes
◆Mounting hole: 20mm, M2/M3

Package Included:
◆1x MAMBA MK4 F722MINI FC
◆1x MAMBA F40_128K_MINI(optional)
◆High Frequency 470uF/35V ×1
◆8pin sh1.0 ×2
◆AIR UNIT sh1.0 ×2
◆16AWG 60mm × 2
◆AMASS Original XT60
