SPECIFICATIONS

Aerial Photography: Yes
Anti-wind Ability: 1
Barcode: Yes
Brand Name: U-Angel-1988
Camera Mount Type: Fixed Camera Mount
Certification: CE
Charging Time: about 2 hour
Charging Voltage: 110-240V
Choice: yes
Control Channels: 4 channels
Controller Battery: No
Controller Mode: MODE2
Dimensions: 140mm
Drone Weight: 150g
Features: App-Controlled
Flight Time: 5~10
High-concerned chemical: None
Indoor/Outdoor Use: Indoor-Outdoor
Is Batteries Included: No
Is Electric: No battery
Material: Carbon Fiber,Plastic,Metal
Model Number: Apex3
Motor: Brushless Motor
Operator Skill Level: Beginner,Intermediate
Origin: Mainland China
Package Includes: Original Box,Camera,Batteries,charger,Operating Instructions
Plugs Type: USB
Power Source: Electric
Recommend Age: 14+y
Remote Control: No
Remote Distance: about 50M
State of Assembly: Ready-to-Go
Takeoff Weight: 50g
Transit Time (Days): about 3km
Type: HELICOPTER
U-ANGEL-1988 Model: EZ-Pilot
Video Capture Resolution: 720P HD
Warning: NO
Warranty: ==

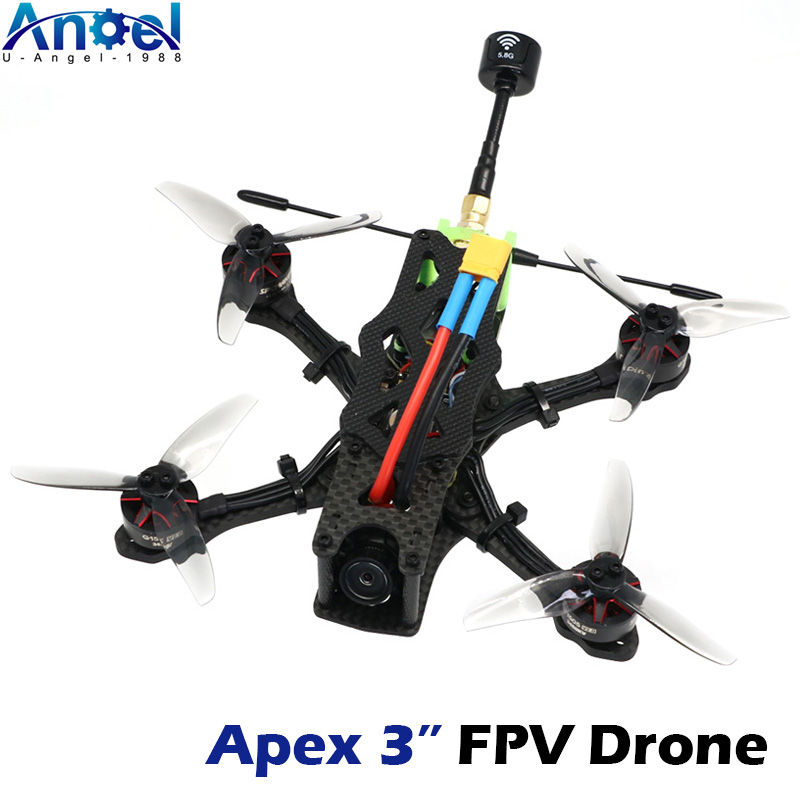

Apex3 3-inch  FPV Drone PNP/BNF

Battery Life: 4-6 minutes (4S, 450mah)(not include)
Image transmission distance: About 1km (the actual distance is related to the environment)
Speed: 50-80km/h
Battery support: 4-6S
Single aircraft weight: 176g

Frameapex3"Wheelbase: 147mm
Arms plate: 4MM
Top plate: 1.5MM
Side plate: 2MM
Flight Controller size: 20*20mm
Camera installation dimensions:19mm"

Blade3020"
Model: 3020-3
Materials:PC
Inch: 3 in
Pitch:2 in
Weight:1.75g
Prop Disk Diameter 76.5mm
Center Thickness:5.5mm"

Motor1505 3450kv"
Model: V2 3450KV
Weight (with cable): 14.3g
Dimension: 20*15.4mm
Shaft diameter: 2mm
Idle Current (10V): 0.75A
Internal resistance: 123mΩ
Motor Cable: 22#AWG 100mm
Configuration: 9N12P
Rated Voltage (Lipo): 4-6S
Current Max(6s): 23.6A"

ESC40A
"Input voltage: 3-6S LiPo
Continue current: 40A * 4
BEC: No
Ammeter: Yes
Installation: hole distance 20mm / M3
Dimensions: 27*29MM
Firmware: Bluejay
Weight: 5.2 g"

FCF405"
Model:F405
MCU:STM32F405/168MHZ
IMU:ICM-42688-P/Gyro/Accel
OSD:AT7456E
Baro:YES
Blackbox:16MB
Input voltage:3-6S(11.5-26V)
5V-BEC:5V/2.5A±0.1V
10V-BEC:10V/2A±0.1V
Receiver:CRSF,SBUS,IBUS,DSM2,DSMX
GPS:YES
Compass:YES
HD O3:YES
USART:UART1,UART3,UART4,UART6
IIC:IIC1
Led_Strip:YES
Buzzer:5V
ESC signal:Dshot150,Dshot300,Dshot600
USB:Micro USB
Current port:YES
Voltage sensor:YES
DFU button:YES
FC Firmware:betaflight_4.4.2 JHEF405PRO.HEX
Size:27*27mm
Mounting Hole:20*20*3mm
Weight:4.6g"

Camera  Robin3
"Model:Robin 3
Image Sensor:1/3"" CMOS Sensor
Horizontal Resolution:1200TVL
Lens:FOV D:150° H:120° V:87°
Screen Format:4:3
Mirror/Flip:Available
Signal System:NTSC/PAL
Shutter:Rolling Shutter
Day/Night:Color/BW
Menu Control:Cable Control
Power:DC 5-23V
Current:120mA @ 5V,60mA @ 12V
Housing Material:ABS
Net Weight:5.3g
Dimensions:19mm x 19mm x 19mm"

VTX 5.8g
25-1000mw"Input Voltage:7-26V
On-Board BEC Output:5V
Number of Tr
